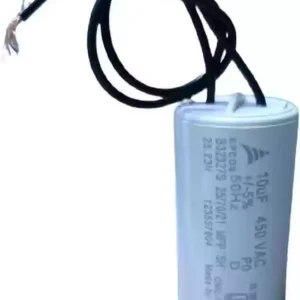

EPCOS Moter Capacitor 10 MFD 450 VAC Power Capacitor
- Vendor:
S.K.M Electronics
Subtotal: ₹130.00
Havells 3.150 Mfd Fan Capacitor Electrolytic Capacitor
Original price was: ₹130.00.₹85.00Current price is: ₹85.00.
| Capacitance |
3.15 MFD
|
| Terminals |
2
|
| Capacitor Type |
Oil Filled
|
| Brand |
Havells
|
| Mounting Type |
Surface Mount
|
| Usage/Application |
Fans
|
| Material |
Aluminium
|
| Tolerance |
10%
|
| Color |
White
|
| Temperature |
-25 Degree C
|
| Frequency |
50 Hz
|
| Voltage |
440 V
|
| Minimum Order Quantity |
1 Piece
|
100 in stock
Description
The Havells 3.15 MFD Fan Capacitor is designed for use in ceiling, exhaust, and pedestal fans. Here’s a detailed description:
Key Features:
- Capacitance Value:
- 3.15 Microfarads (MFD), ideal for fan speed regulation and smooth performance.
- Mounting Type:
- Surface-mounted for easy and secure installation.
- Applications:
- Specifically engineered for fans, ensuring optimal torque and efficiency.
- Build Quality:
- Manufactured with high-grade materials for durability and reliable performance.
- Resistant to high temperatures and fluctuations in voltage.
- Design:
- Compact size to fit neatly within fan housings.
- Lightweight yet robust construction.
- Safety:
- Designed to meet electrical standards for safety and efficiency.
Uses:
- Improves fan speed and smooth operation.
- Ideal for homes, offices, and industrial spaces requiring consistent fan performance.
Would you like me to find additional specifications or features for this capacitor?
-
10k Ohm 0.25W Metal Film Resistor Pcs 20
Specification:- Resistance: 10k Ohm
- Tolerance: 1%
- Max. Working Voltage: 250V
- Temperature Coefficient of Resistance: 50PPM/°C
-

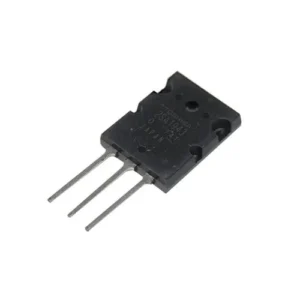

Toshiba 2SA1943 Transistor, PNP, -15A
Collector Base Voltage 230 VCollector Emitter Voltage 230 VEmitter Base Voltage -5 VCollector Current -15 VCollector Dissipation 150 WCurrent Gain 55 – 160Transition Frequency 30 HzMinimum Order Quantity 50Original price was: ₹205.00.₹140.00Current price is: ₹140.00.Power Amplifier Applications:- High collector voltage VCEO = −230 V (min)
- Complementary to 2SC5200
- Recommended for 100-W high-fidelity audio frequency amplifier output stage.
-
EPCOS Capacitor 20 MFD 450 VAC Power Capacitor
SpecificationsOriginal price was: ₹350.00.₹160.00Current price is: ₹160.00.Brand - OBM
Model Number - Epcos 20 mfd Capacitor
Type - Power Capacitor
Voltage Rating - 440
Maximum Operating Temperature - 60 degC
Minimum Operating Temperature - 2 degC
Capacitance - 20mfd
Material - Plastic Film
Frequency - 50Hz
Used For - Motor
-

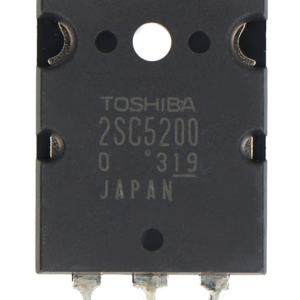

2SC5200 NPN Power Amplifier Transistor 230V 15A
Detailed Specifications:-
Original price was: ₹210.00.₹150.00Current price is: ₹150.00.Transistor Polarity NPN Collector-Base Voltage (VCBO) 230V Collector-Emitter Voltage (VCEO) 230V Emitter-Base Voltage (VEBO) 5V Continuous Collector Current (IC) 15A Base Current (IB) 1.5A Transition Frequency (fT) 30MHz DC Current Gain (hFE) 55-160 Operating Temperature Range -55 – 150°C Power Dissipation (PD) 150W -

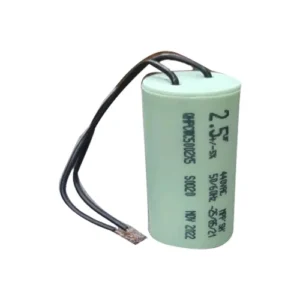

Havells 2.5 Fan Capacitor
Original price was: ₹150.00.₹70.00Current price is: ₹70.00.Usage/Application FansBrand HavellsMaterial PlasticTolerance 10%Model Name/Number QMPPWC5002X5Power Source ElectricFrequency 50hz -
EPCOS Capacitor 25 MFD 450 VAC Power Capacitor
Capacitance 25 MFDCapacitor Type CeramicUsage/Application FansCapacitance (uF) 25 uFVoltage Rating 450 V ACFrequency 50 HzOriginal price was: ₹399.00.₹180.00Current price is: ₹180.00.
Related products
-

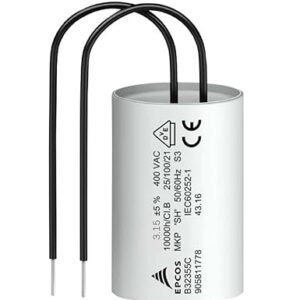

EPCOS 3.15uf capacitors for Fan and Motors
Original price was: ₹130.00.₹99.00Current price is: ₹99.00. -

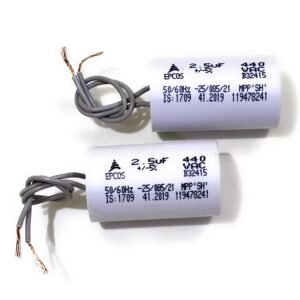

EPCOS 2.5 MFD Ac Fan Capacitor
Voltage Rating 450Frequency (Hz) 50Accuracy (%) 5Capacity 2.5Terminal WireShape CylindricalColor WhiteBrand EpcosMinimum Order Quantity 1Original price was: ₹120.00.₹95.00Current price is: ₹95.00.2.5 mfd used for ceiling fans
